RESIDENTIAL | MULTI-FAMILY | COMMERCIAL
Full coverage for corners and transitions.

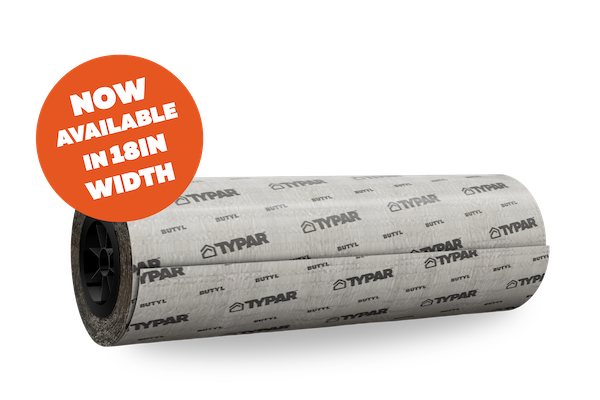

TYPAR 4”, 6”, 9”, and 12” Butyl Flashing definitely delivers on the basics. But now, we’re excited to introduce 18” Typar Butyl Transition Flashing to our flashing portfolio. Wide-width Typar Butyl is ideal for protecting those pesky inside and outside corners, where cladding installation has a greater chance of impacting the weather-resistant barrier.
| CHARACTERISTIC | TEST METHOD | VALUE |
|---|---|---|
| TOTAL THICKNESS | 15.5 mils | |
| FACER THICKNESS | 6.2 mils | |
| ADHESIVE THICKNESS | 9.3 mils | |
| PEEL ADHESION TO SUBSTRATES: | ||
| OSB | 2.8 (lb/in) | |
| PLYWOOD | 7.2 (lb/in) | |
| FACER | 6.9 (lb/in) | |
| ADHESIVE | Butyl Rubber Copolymer | |
| APPLICATION TEMPERATURE RANGE | 30°F (-1°F) to 180°F (82°C) | |
| BREAKING STRENGTH (GRAB TENSILE) | (ASTM D5034) | Pass 55 lbs/in |
| ULTRAVIOLET LIGHT EXPOSURE RESISTANCE | 6 months | |
| COLD TEMPERATURE PLIABILITY | (ASTM D3330) | Pass |
| NAIL SEALABILITY | (ASTM D1970) | Pass |
Install the system. Get a lifetime limited warranty.* TYPAR Butyl Flashing, along with the full TYPAR® Weather Protection System, delivers coverage and confidence that can’t be touched. That’s why we call it the best in the business.
*TYPAR Butyl Flashing is part of the TYPAR lifetime limited system warranty when used with the complete TYPAR Weather Protection System. Certain limitations and exclusions apply. See the TYPAR Weather Protection System Limited Warranty for full details located online at www.typar.com/downloads.
